2200F 10"x10"x12" Knife Oven HS-1200K

$2,114.00 USD

Controller

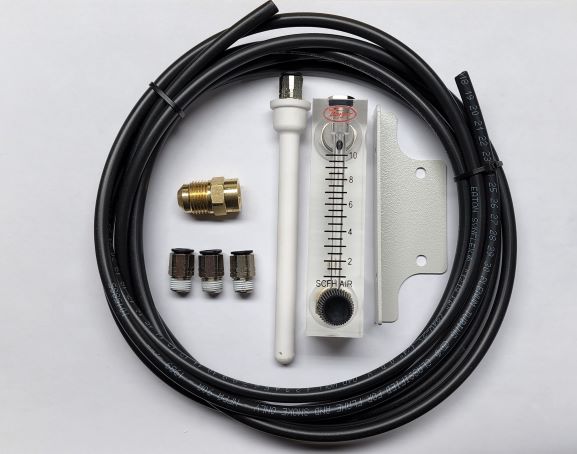

Argon Kit

Produc variants

Qty.

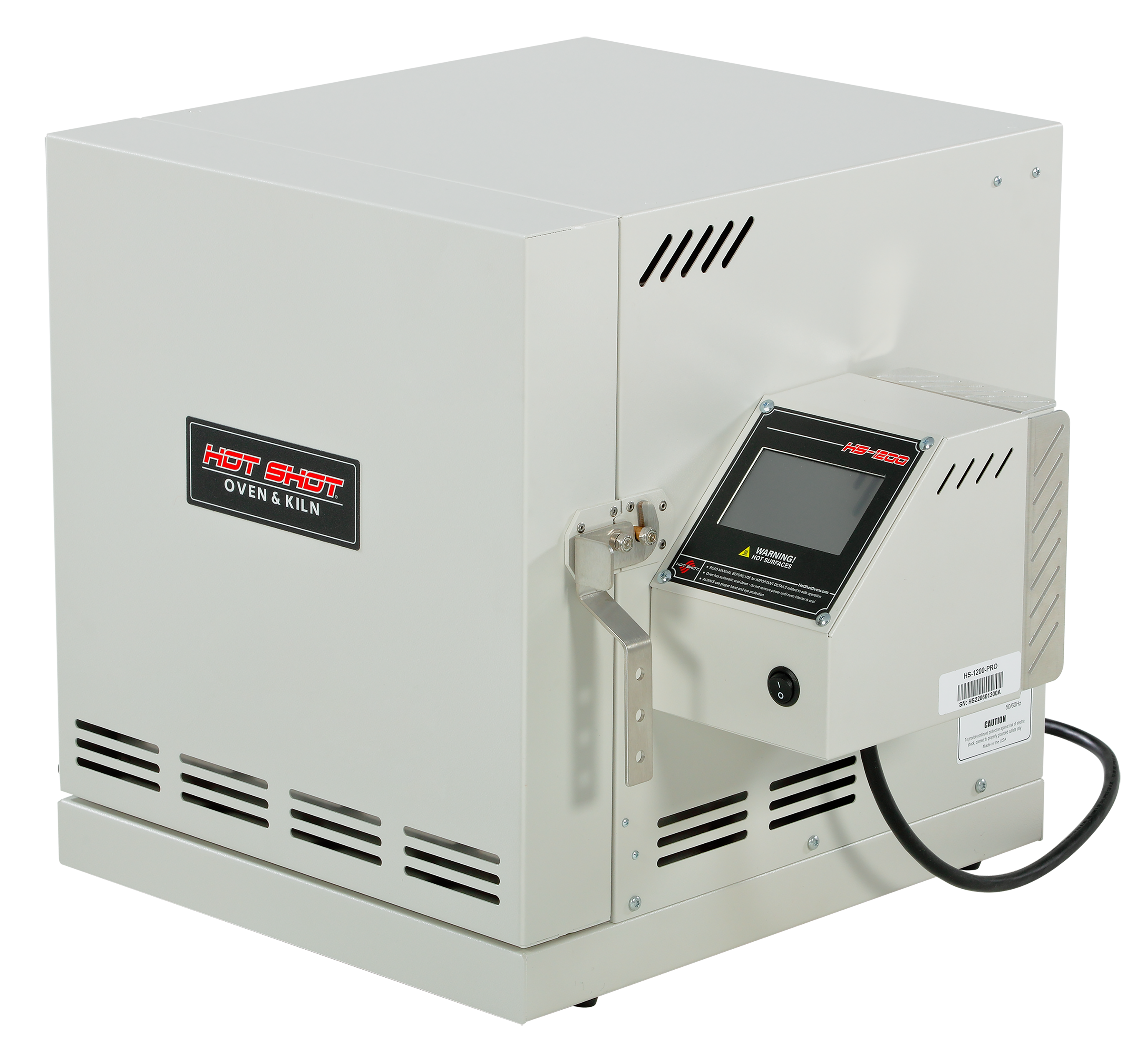

The Hot Shot 1200K is a single chamber, 240V multi-purpose oven that is perfect for blacksmithing and knife making. This size oven allows you to do multiple blades at once to be as efficient as possible. Take the guess work out of planning around outsourced Heat Treating and do it in house. Built in Wisconsin, with the highest quality components, and engineered by makers for makers. Hot Shot is excited to offer an oven that not only is cool to the touch, but also offers an industry leading mechanical design.

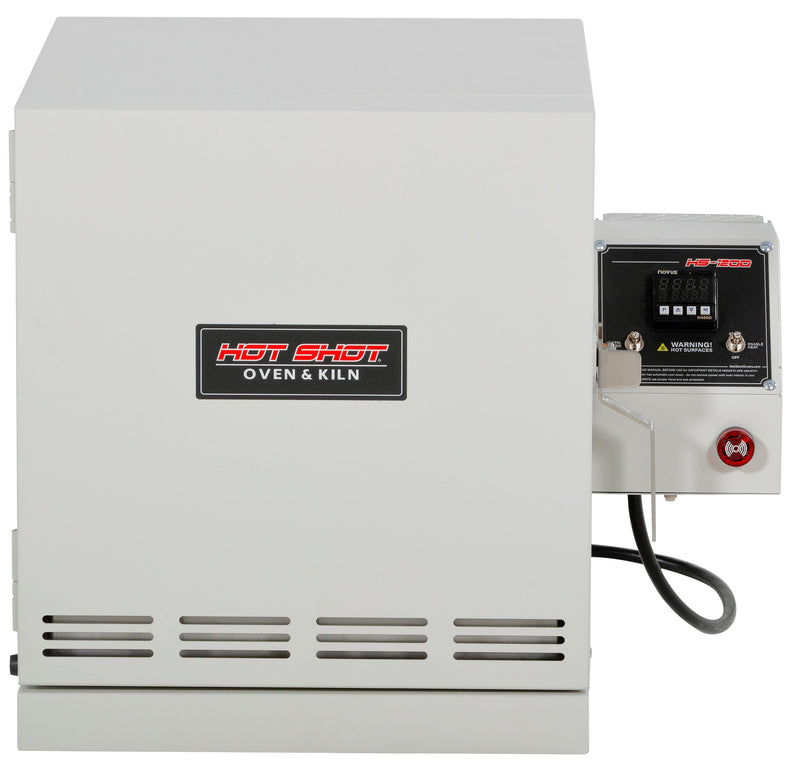

STANDARD OFFERING: Novus Controller

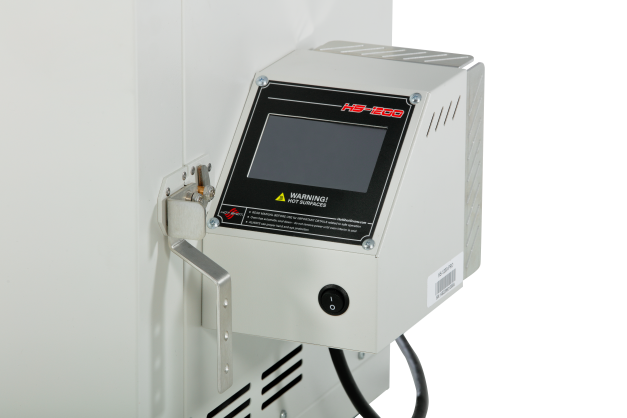

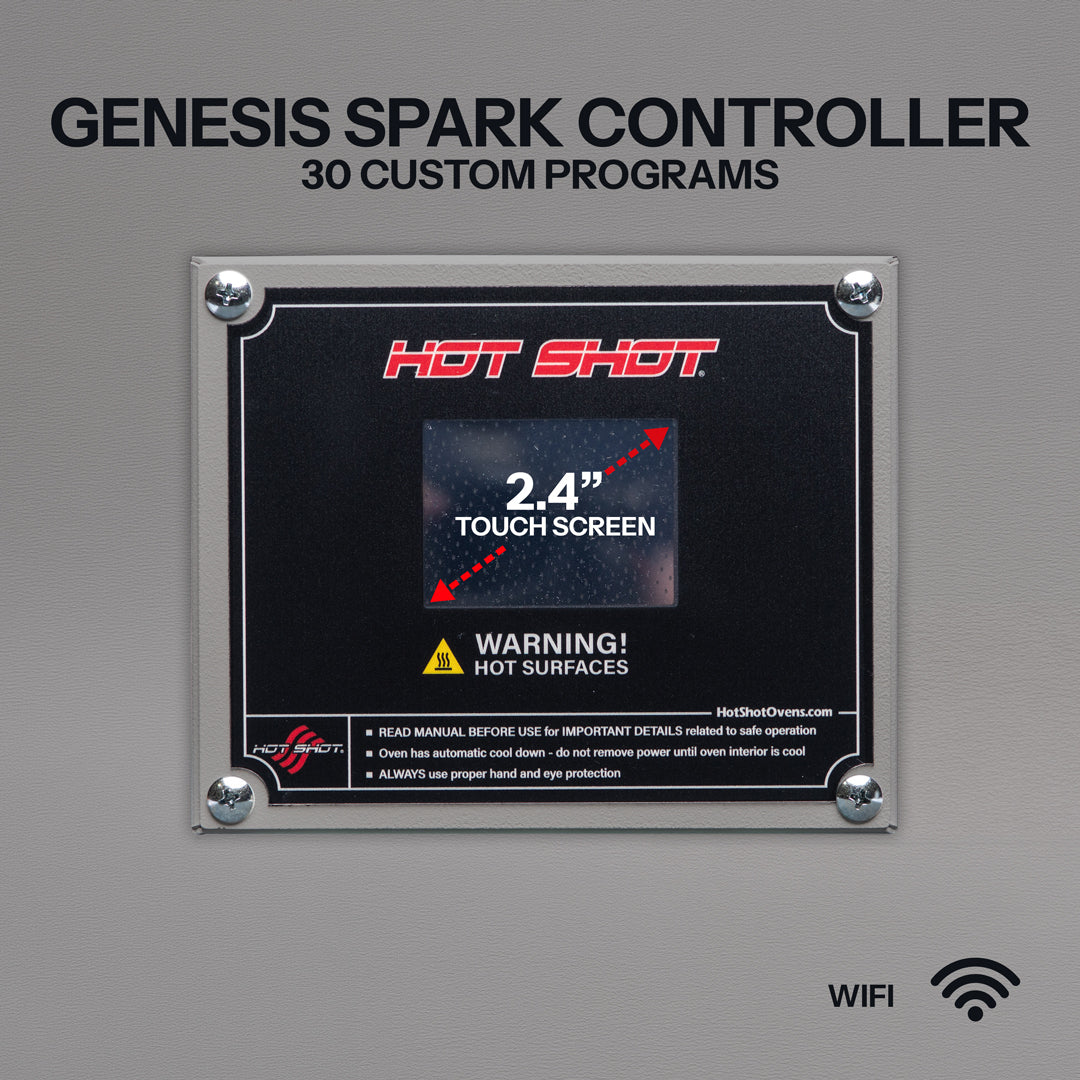

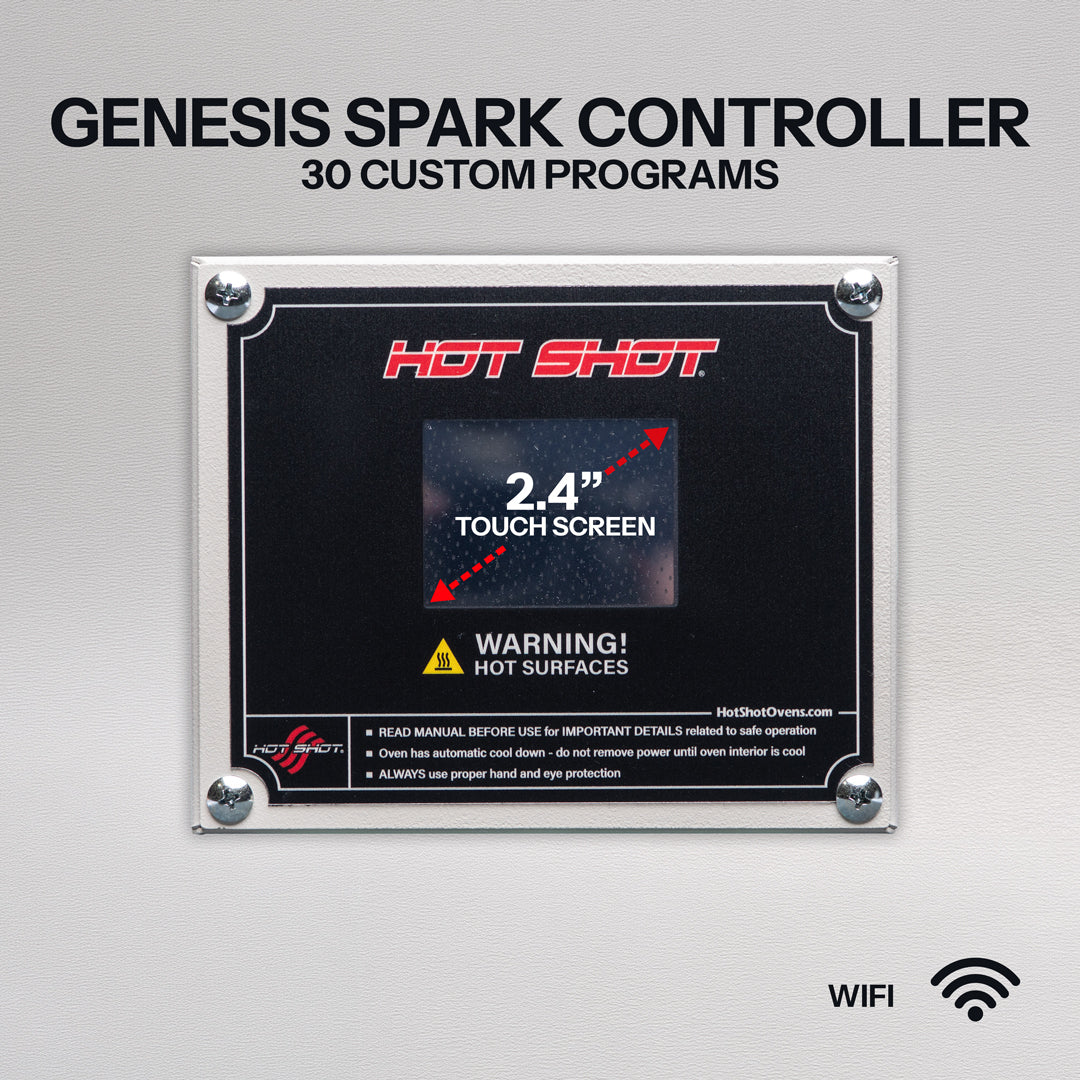

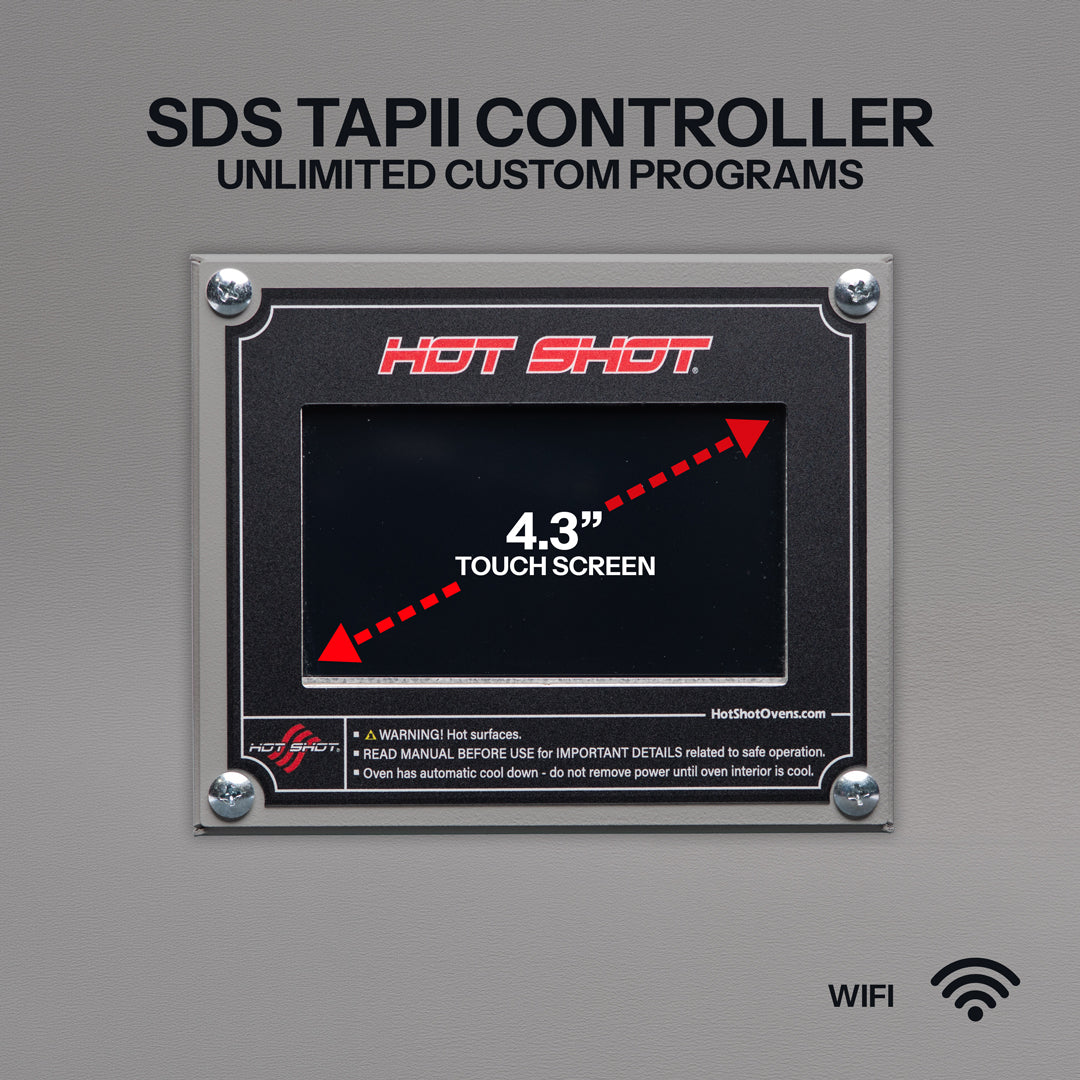

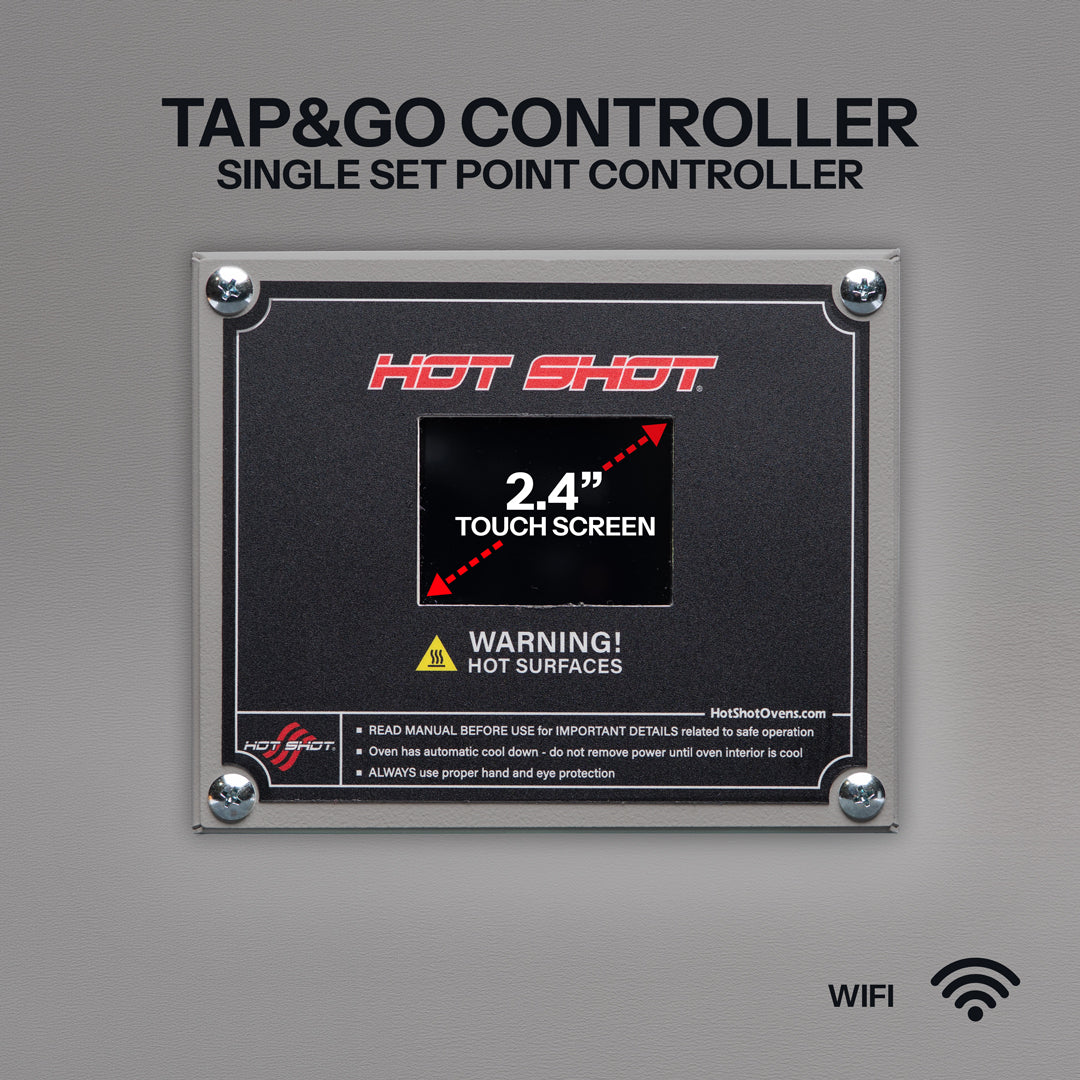

UPGRADED CONTROLLER: Spark or TAP Controller - Learn more HERE

SHIPPING NOTICE: This unit ships on a skid via Freight Truck. If you are in need of additional delivery services please contact our office at 262-361-4912.

Max Temperature	2200°F
Plug Voltage	240V
Max Amp Draw	17 Amps
1-Phase Circuit Required	20 Amps
Break-in Period	4-5 Hours
Length of Cord	3ft
Weight	73lbs.
Dimensions (Exterior/Interior)	21”Lx23”Wx20”H \| 12”Dx10”Wx10”H
Specifications	Download HERE
Warranty	12 Months

USER MANUALS:
Oven Manual Download HERE
Download (NOVUS) HERE
Download (TAP) HERE
Download (SPARK) HERE

2200F 10"x10"x12" Knife Oven HS-1200K

$2,114.00 USD

The Perfect Oven For Knife Making

Heat treating knives is done to harden the steel for sufficient use and to not cause any damage or weakness to the knife. Owning your own oven allows you to heat treat on your time and not have to wait for the heat treating facility.

What is heat treating?Heat treating can improve the strength, durability and reduce wear on material. It is the process of heating metal to a certain temperature, ramping the temperature(s) at a certain rate of time, soaking or holding it at the temperature(s) and then cooling it.

Why heat treat?The purpose of heat treating is to bring steel to a hardened state. The correct hardness depends on the application of the steel being treated.

Why would I want my own oven to heat treat?The main reason you would want to do your own heat treating is to save time and money. Heat treating facilities can often be backed up, expensive and require certain size batches of material to be done at one time. Heat treating knives allows the knife to get to a hardness level that will not cause the knife to bend, get damaged or cause any weak parts.

Cool-to-Touch Technology

Hot Shot Oven & Kilns are equipped with Cool-Touch Technology that provide a safe external temperature to allow for safer operation and protection of its surroundings. It is built with a high quality and fan cooled powder coated enclosure. It features a dual layer air plenum for external heat management and precise temperature control.

Constructed to last

Hot shot ovens are specifically designed with the end user in mind. Hot Shot ovens feature a full swing side opening door to allow safe and easy insertion and removal of material as well as a cool-to-touch one-handed handle made from high quality stainless steel for easy opening and closing.

Hot Shot ovens are constructed with a high quality powder coated shell. The high density fiber insulation in a Hot Shot oven is machined to high tolerance specifications so that each piece fits perfectly together to provide a proper seal, ensuring that it will maintain its temperature and work efficiently to prevent loss of heat. Each oven comes with a removable high density floor. This is ideal to assist with project setup or if it needs to be replaced.

Hot shot uses Kanthal A1 heating elements, a type K thermocouple and every oven comes standard with a solid state relay at no additional charge.

WI-FI ENABLED

PRO CONTROLLER

UNLIMITED PROGRAMS

MORE DETAILS

PERFECTLY CONSTRUCTED

REMOVABLE DOOR

EASY IN & EASY OUT

LEARN MORE

COOL TO TOUCH

FAN COOLED TECHNOLOGY

KEEPING YOU AND YOUR AREA SAFE

MORE DETAILS

What Are The Stages of Heat Treating a Knife?

There are 3 stages of heat treating. Each metal will be done at different temperatures so we highly recommend checking out our Heat Treating Recipes Page for more details!

1.The Normalize Stage. Normalization is a process intended to refine grain and stress relieve blades prior to hardening when needed.

2.The Quenching Stage. This is done after heating where you quickly put the knife into a can of oil to Quench the metal.

3.The Tempering Stage. After Quenching the knife metal can be very brittle. Tempering the metal allows the metal to get to a very strong state.

Heat Treating Recipes

Advanced Features

Solid State Relay

Unlike many other ovens & kilns all Hot Shot ovens come standard with a solid state relay. Having a solid state relay eliminates the distractive clicking noise that a mechanical relay makes. A solid state relay is also more dependable and provides a longer life expectancy than that of a mechanical relay.

Programmable Alarm

Each unit comes standard with an integrated alarm that can be set to alert the user when a desired point or temperature is reached in the program.

Safety Door Switch
We also have integrated a safety door switch that will de-energize the heating
element when the door is open.
