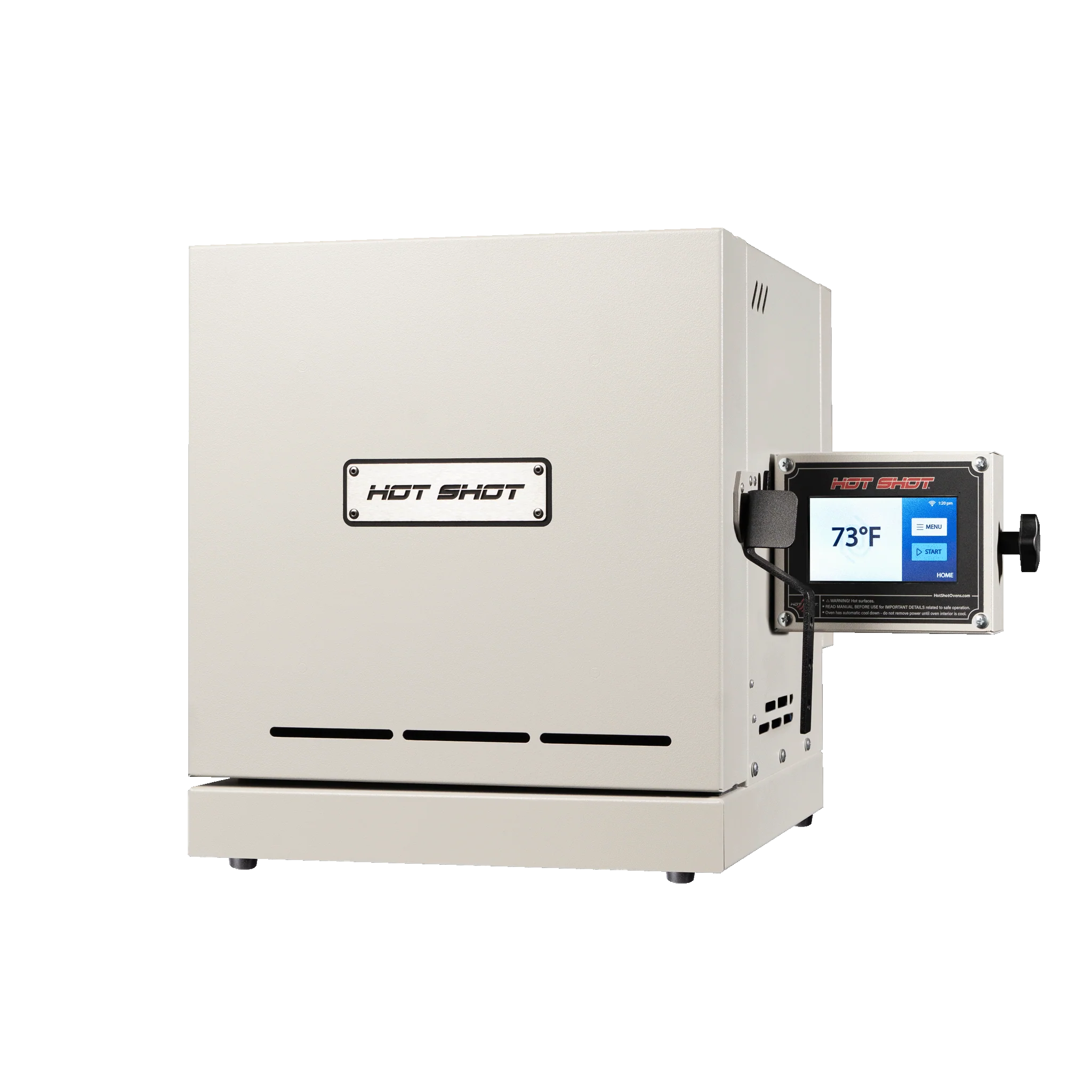

Wax Burnout Kiln 7

Hot Shot Oven & Kiln

$1,499.00 USD

Controller

Produc variants

Qty.

The 7G Wax Burnout Kiln is a versatile tool designed primarily for the lost wax casting process but is also suitable for a range of other applications. Here's a breakdown of its features and uses:

Features:

SPARK Controller: Comes standard with a user-friendly, full touch screen interface for easy operation and precise control of the kiln's settings.
TAP PRO Controller Upgrade: Available as an optional upgrade, this controller features a larger touch screen for those who prefer a more spacious display and additional convenience.
Lost Wax Burnout Vent Hole/Plug: Equipped with a vent hole/plug with a diameter of Ø.75 inches, which is essential for the burnout process. This feature allows for proper ventilation of the wax as it melts away from the mold.

Learn more about our Controller Options HERE

Uses:

Lost Wax Casting: Ideal for burning out the wax from molds before metal casting. This process is critical for creating detailed and intricate metal pieces.
Metal Clay: Can be used to fire metal clay, which requires specific temperature controls to achieve the desired results.
Enameling: Suitable for glass enameling, where powdered glass is fused onto metal surfaces at high temperatures.
Fused Glass Jewelry: Can also be used for fusing glass pieces together to create unique jewelry designs.

Summary:

The 7G Wax Burnout Kiln offers flexibility and precision for various crafting needs. Whether you’re focused on lost wax casting, working with metal clay, or experimenting with enameling and fused glass, this kiln can handle it all. Its advanced controllers and built-in venting make it a reliable choice for artists and jewelers looking to achieve high-quality results.

AMPERAGE/VOLTAGE: 15amp is equipped with an 1500W element. Read more about this HERE.


		15amp/120V
Max Temperature		1850°F
Plug Voltage		120V
Max Amp Draw		13 Amps
1-Phase Circuit		15 Amps
Break-in Period		Ready to Use
Length of Cord		6ft
Weight		47lbs
Dimensions (Exterior/Interior)		16.5D x 20"W x 16”H \| 7”D x 7”W x 7”H
Specifications		Download HERE
Warranty		12 Months

USER MANUALS:
Oven Manual Download HERE
Download (TAP) HERE
Download (SPARK) HERE

Wax Burnout Kiln 7"x7"x7" - HS-7GW

$1,499.00 USD

The World of Glass

IMPORTANT: The most important thing when working with glass is to make sure the glass is compatible with the project you are working on. Glass is rated off of a Coefficient of Expansion (C.O.E.) rating. This rating is given to glass based on how it expands and contracts. Therefore, you cannot fuse glasses with differing C.O.E. rates together or it will break!

The world of glass is a beautiful form of art. Creators make sculptures bowls and other magnificent and unique pieces detailing the vision of their artistic mind. Glass kilns are perfect for all your glass projects. Most glass projects need temperatures to go up to 1700F with many processes being done at lower temps. Hot Shot Ovens can achieve all of the processes of annealing, fusing, slumping and casting in order to turn your idea into a beautiful piece of art.

JEWELRY MAKING

GLASS FUSING

SLUMPING & CASTING

The Different Stages of Glass Making Explained

Annealing & Soaking

Annealing is the process of slowly cooling glass after it has been formed. Annealing glass is typically done at roughly 950-960F°. Annealing helps the glass not to crack. It makes the molecules in the glass vibrate to get the stress out of them. This is done in bead making as well. It allows the beads to become strong and not brittle. This process takes about an hour to fully soak the glass.

Soaking is a term used frequently in these processes and it means to hold the product at a certain temperature for a certain period of time.

Fusing

Glass fusing is simply the process of stacking two or more layers of compatible glass together to make a design, and then placing the stacked glass into a kiln, where it melts (fuses) together.

Tack Fuse: This process is done at the lowest temperature of 1350-1370F which will allow the glass to stick together but keeps its edges and form until it starts to exceed this temperature.

Medium/Soft Fuse: This is done at 1400-1450F and will cause all the glass to have softened rounded edges.

Full Fuse: This is the process where the glass becomes fully fused together. This allows the surface to be fully smooth without any texture. This process is done at 1450-1470F.

Slumping & Casting

SLUMPING : The forming stage of warm glass work that allows you to shape your fused projects into beautiful and functional items by heating them just enough to bend or ‘slump’ them into ceramic or metal forms. This process is normally used to make plates, bowls, platters and other decorative art. Slumping range of most glass 1200°F to 1300°F.

CASTING: A glass firing technique using hollow or open faced molds to contain and shape the melting glass. Glass Pasting or also known as Pâte de Verre is done at 1300°F to 1400°F. This casting technique uses finely crushed glass and produces a textured or frosted surface look. Cavity or Open Face is done at 1450°F to 1700°F. These firing temperatures for casting range significantly based on sizes and thickness of both the molds and the glass that is being used.

Temperatures used to make glass art:

1200°F Draping – glass softens enough to bend over a mold.

1250°F Slumping – glass softens enough to bend into a mold.

1300°F Fire Polish – glass melts enough to produce a surface polish.

1350°F Tack Fuse – pieces of glass will permanently fuse together.

1450°F Full Fuse – pieces of glass will fuse and melt to a single level.

The Hot Shot Oven empowers artists and craftsmen to create without limits.

WI-FI ENABLED

PRO CONTROLLER

UNLIMITED PROGRAMS

MORE DETAILS

COOL TO TOUCH

FAN COOLED TECHNOLOGY

KEEPING YOU AND YOUR AREA SAFE

MORE DETAILS

Cool to Touch Technology

Hot Shot Oven & Kilns are equipped with Cool-Touch Technology that provide a safe external temperature to allow for safer operation and protection of its surroundings. Having a cool oven allows for your shop to stay cool too. We all know Machine Shops can get hot from all of the equipment running, this oven will not add to that! Keep your shop cool while Heat Treating!

Constructed to last

Hot shot ovens are specifically designed with the end user in mind. Hot Shot ovens feature a full swing side opening door to allow safe and easy insertion and removal of material as well as a cool-to-touch one-handed handle made from high quality stainless steel for easy opening and closing.

Hot Shot ovens are constructed with a high quality powder coated shell. The high density fiber insulation in a Hot Shot oven is machined to high tolerance specifications so that each piece fits perfectly together to provide a proper seal, ensuring that it will maintain its temperature and work efficiently to prevent loss of heat. Each oven comes with a removable high density floor. This is ideal to assist with project setup or if it needs to be replaced.

Hot shot uses Kanthal A1 heating elements, a type K thermocouple and every oven comes standard with a solid state relay at no additional charge.

Advanced Features

Solid State Relay: Unlike many other ovens & kilns all Hot Shot ovens come standard with a solid state relay. Having a solid state relay eliminates the distractive clicking noise that a mechanical relay makes. A solid state relay is also more dependable and provides a longer life expectancy than that of a mechanical relay.

Programmable Alarm: Each unit comes standard with an integrated alarm that can be set to alert the user when a desired point or temperature is reached in the program.

Safety Door Switch: We also have integrated a safety door switch that will de-energize the heating element when the door is open.
