Low Temp Ceramic Kiln 6"x6"x10" HS-360C

Hot Shot Oven & Kiln

$1,394.00 USD

Controller

Amperage/Voltage

Produc variants

Qty.

NOTE: This kiln is to only be used for Low Temp Ceramics (under 2200F firing temperature) and must be in a well ventilated area.

The Hot Shot 360C is a space saving yet highly effective oven for your smaller ceramic projects. This oven comes in multiple power configurations such as a 15amp-120V , 20amp-120V, or for optimal performance 20amp-240V. This is truly a gem that can be used in even the smallest of shops and includes Hot Shot's cool to touch technology setting the bar for safety in the oven and kiln industry. Built in Wisconsin using the highest quality components we are excited to offer an oven that can be used anywhere by anyone!

STANDARD OFFERING: Novus Controller with 3ft Cord

UPGRADED CONTROLLER: Spark Touch or TAP Controller with 6ft Cord - Learn more HERE

AMPERAGE/VOLTAGE: 15amp is equipped with an 1800W element and the 20amp is equipped with a 2000W element. The 20amp version will get up to temperature faster than the 15amp. The 20amp/240V is more efficient. Read more about this HERE.


	15amp/110V	20amp/120V	20amp/240V
Max Temperature	2200°F	2200°F	2200°F
Plug Voltage	110V	120V	240V
Max Amp Draw	15 Amps	17 Amps	9 Amps
1-Phase Circuit	15 Amps	20 Amps	20 Amps
Break-in Period	4-5 Hours	4-5 Hours	4-5 Hours
Length of Cord	3ft	3ft	3ft
Weight	47lbs.	47lbs	47lbs
Dimensions (Exterior/Interior)	20”Lx18.5”Wx16”H \| 10”Dx6”Wx6”H	20”Lx18.5”Wx16”H \| 10”Dx6”Wx6”H	20”Lx18.5”Wx16”H \| 10”Dx6”Wx6”H
Specifications	Download HERE	Download HERE	Download HERE
Warranty	12 Months	12 Months	12 Months

USER MANUALS:
Oven Manual Download HERE
Download (NOVUS) HERE
Download (TAP) HERE
Download (SPARK) HERE

Low Temp Ceramic Kiln 6"x6"x10" HS-360C

$1,394.00 USD

Making Ceramics:

IMPORTANT: Firing Ceramics and applying glazes MUST BE done in a well ventilated area. This oven is to be used for low temp ceramics that do not need to exceed 2200F.

Ceramics are an area of art most of the population knows about. Most of us have had the ability to work with clay in art class during school to create a vase, bowl, sculpture, etc. The endless opportunities from working with clay are amazing to create your work of art. The most important part outside of the design of the clay, is firing the clay. Once fired the clay goes from clay/mud to ceramic and becomes a lot more durable.

What is Firing?

Firing is the process that changes the clay into ceramic form. This ceramic form is strong and more durable. Typically the work is fired twice. The first step is to bisque fire it. Bisque is the term used for this first part of firing. This creates a durable but porous piece of art. The second is to glaze fire the piece. Since the piece is now porous, this will allow the glaze to soak into the piece.

The temperature used during firing is all dependent not only on the clay used, but also on the glaze. You must make sure that the glaze and clay are withing the specifications of the kiln being used. If you burn a low temp clay or glaze at too high of a temp, the clay could melt and the glaze could run off and not stick to the piece.

What Kiln is Right for Me?

Hot Shot offers many different sizes of kilns and we are continuing to develop more sizes and temperature ranges for all of your needs. We have the perfect table top units for your low temp ceramic projects that are cool to the touch. All units come standard with Cool to Touch Technology making them safe being on and near your workstation. These must be in a well ventilated area such as a garage or shop to vent out fumes from firing.

2200F

Small Vases, Bowls, Plates & Sculptures

Part #: HS-360C

2200F

Medium Size Vases, Bowls, Plates & Sculptures

HS-1200C

6"Wx10"Dx6"H

Shop Now

10"Wx12"Dx10"H

Shop Now

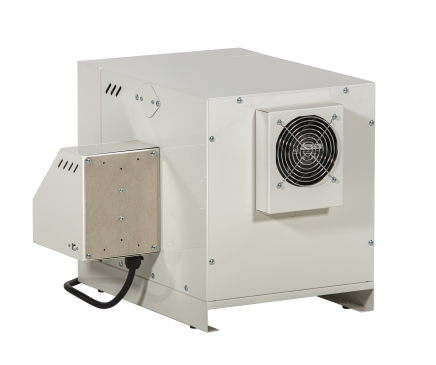

Cool to Touch Technology

Hot Shot Oven & Kilns are equipped with Cool-Touch Technology that provide a safe external temperature to allow for safer operation and protection of its surroundings. Having a cool oven allows for your shop to stay cool too. We all know Machine Shops can get hot from all of the equipment running, this oven will not add to that! Keep your shop cool while Heat Treating!

How our Electric Kiln Fires Clay & Glazes

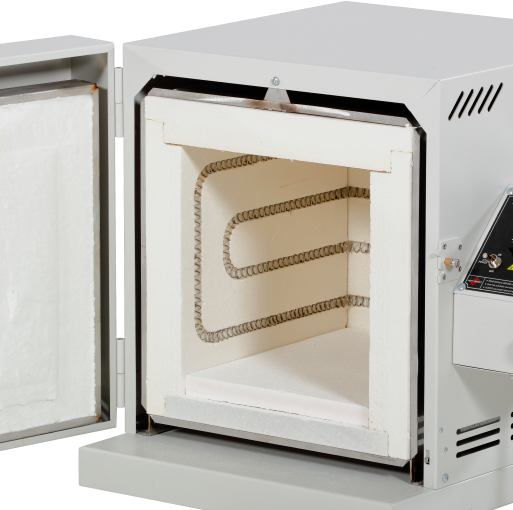

Our kilns are equipped with heating elements that are snaked throughout the 3 sides of the kiln. Coiled heating elements inside the kiln contain an electrical current/movement and cause the wire to heat up. As this wire is heating it causes radiant heat to be distributed throughout the inside of the kiln. This is very similar to your home oven, but at a much higher temperature.

WI-FI ENABLED

PRO CONTROLLER

UNLIMITED PROGRAMS

MORE DETAILS

PERFECTLY CONSTRUCTED

REMOVABLE DOOR

EASY IN & EASY OUT

LEARN MORE

COOL TO TOUCH

FAN COOLED TECHNOLOGY

KEEPING YOU AND YOUR AREA SAFE

MORE DETAILS

Constructed to last

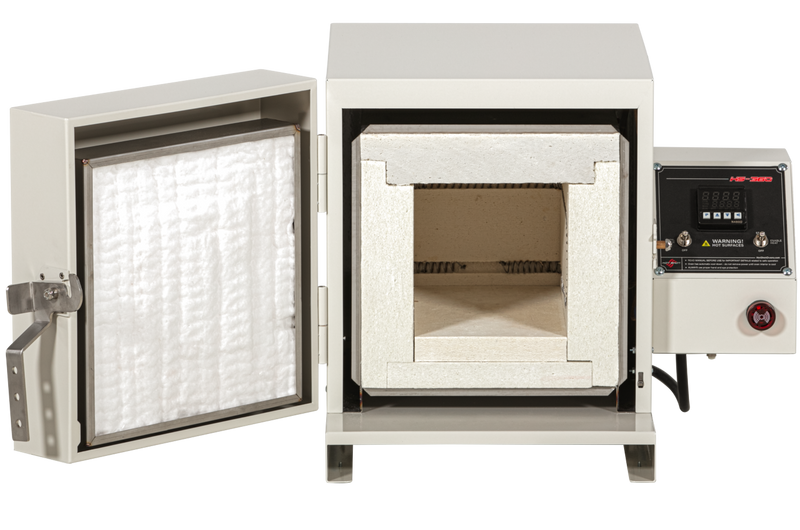

Hot shot ovens are specifically designed with the end user in mind. Hot Shot ovens feature a full swing side opening door to allow safe and easy insertion and removal of material as well as a cool-to-touch one-handed handle made from high quality stainless steel for easy opening and closing.

Hot Shot ovens are constructed with a high quality powder coated shell. The high density fiber insulation in a Hot Shot oven is machined to high tolerance specifications so that each piece fits perfectly together to provide a proper seal, ensuring that it will maintain its temperature and work efficiently to prevent loss of heat. Each oven comes with a removable high density floor. This is ideal to assist with project setup or if it needs to be replaced.

Hot shot uses Kanthal A1 heating elements, a type K thermocouple and every oven comes standard with a solid state relay at no additional charge.

Advanced Features

Solid State Relay: Unlike many other ovens & kilns all Hot Shot ovens come standard with a solid state relay. Having a solid state relay eliminates the distractive clicking noise that a mechanical relay makes. A solid state relay is also more dependable and provides a longer life expectancy than that of a mechanical relay.

Programmable Alarm: Each unit comes standard with an integrated alarm that can be set to alert the user when a desired point or temperature is reached in the program.

Safety Door Switch: We also have integrated a safety door switch that will de-energize the heating element when the door is open.
